CHANGE YOUR ENERGY CHANGE YOUR LIFE
Harnessing the true potential of your solar panels has never been easier with the advent of solar power storage batteries. Now you can store the power you create from your solar panels to use later; whether it’s at night, as an emergency backup power source or to move off the grid entirely.
By using a solar storage battery, your solar panels simply charge the battery during the day which in turn powers your home at night providing you around the clock green energy.
By combining your solar panels with one or more solar storage batteries you could power your home independently from the utility grid. It is dependent on a number of factors but if your home produces as much energy as it consumes you are no longer dependent on utility services for your power, but still remain connected to the grid in case of periods of high demand.
Even during times of power outages, you can continue to power your home with your Solar battery.
LG’s Chem Solar Storage Battery is incredibility sleek and easily installed. Offering you an economical and environmentally friendly way to power your home without compromising on style or surrendering space.
A typical LG Chem System includes solar panels , an inverter for converting electricity between direct current and alternating current , a metter for measuring battery charge , and in backup applications , a secondary circuit that powers ket appliances . Which components are required depends on how you home battery .
The home battery is charged with electricity generated by solar panels or from the utility grid.
Electricity from the inverter is sent to your home's electrical panel. For a applications with-out solar, and night time, electricity generated by the power company is sent from the electri-cal panel to the inverter to charge the Power-wall.
Panels convert sunlight into electricity that charges Powerwall and powers your home during the day. Without solar, Powerwall can reduce time of use power bills by strategically shifting energy consumprion.

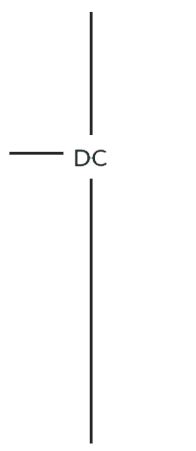

The inverter converts direct current electricity from solar panels, the grid and Powerwall into the alternating current used by your home's lishts, appliances and devices.
All Powerwall installations require a compatible inverter. To maximize solar consumption, a meter is also installed to measure solar produc-tion and home energy use.

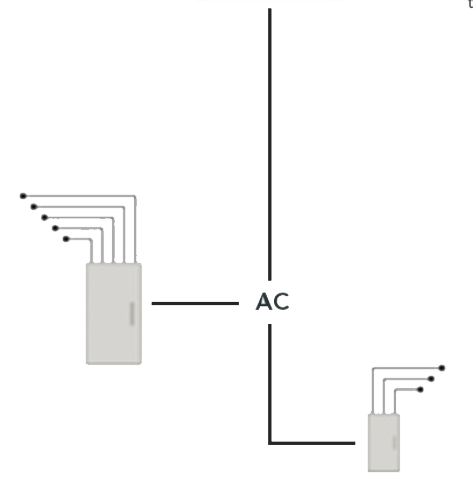

Some backup installations may require a sec-ondary electrical panel containing the critical appliances and outlets you wish to back up. An electrical switch autmatically activates the backup panel during a power company outage. When installed with solar, this switch can keep your solar producing during an outage. Backup is an optional feature when installing to maxi-mize solar or shift energy consumprion.
Each Powerwall has a 6.4 kWh energy storage capacity, sufficient to power most homes during the evening using electricity generated by solar panels during the day. Multiple batteries may be installed together for homes with greater energy needs.
48V

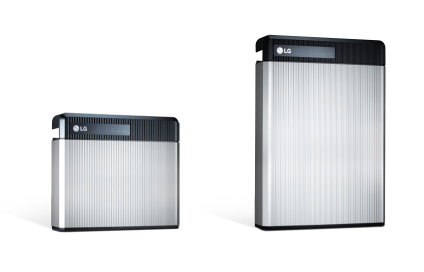

| Models | RESU3.3 | RESU6.5 |
|---|---|---|
| Total Energy [kWh] | 3.3 | 6.5 |
| Usable Energy [kWh] | 2.9 | 5.9 |
| Capacity[Ah] | 63 | 126 |
| Nominal Voltage [V] | 51.8 | 51.8 |
| Voltage Range [V] | 42.0~58.8 | 42.0~58.8 |
| Max Power [kW] | 3.0 | 4.2 |
| Peak Power [kW](for 3 sec.) | 3.3 | 4.6 |
| Dimension [W x H x D , mm] | 452x401x120 | 452x654x120 |
| Weight [kg] | 31 | 52 |
| Enclosure Protection Rating | IP55 | |
| Communication | CAN 2.0 B | |
| Certificates | Cell | UL 1642 |
| Product | TUV (IEC 62619) /CE/RCM | |
Compatibale inverter Brands : (As of 3Q.2016, More brands to be added)
48V

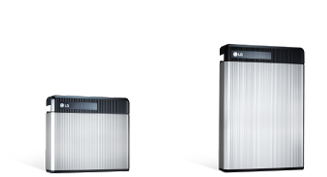

| Models | RESU7H | |
|---|---|---|
| Total Energy [kWh] | 7.0 | |
| Usable Energy [kWh] | 6.6 | |
| Capacity[Ah] | 63 | |
| Voltage Range [V] | 350~450 | |
| Max Power [kW] | 3.5 | |
| Peak Power [kW](for 10 sec.) | 5.0 | |
| Dimension [W x H x D , mm] | 744x692x206 | |
| Weight [kg] | 76 | |
| Enclosure Protection Rating | IP55 | |
| Communication | RS485 | |
| Certificates | Cell | UL 1642 |
| Product | TUV (IEC 62619) /CE/RCM | |
Compatibale inverter Brands : SMA(RESU10H), SolarEdge(RESU7H,10H)
(AS of 3Q.2016, More brands to be added)
